UMC TK-8663-2J-D02A

From Vogons Wiki
Jump to: navigation, search
UMC TK-8663-2J-D02A

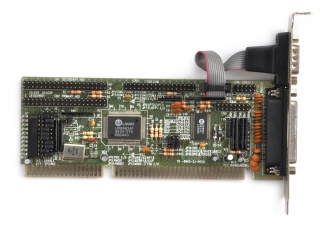

UMC TK-8663-2J-D02A.jpg
Bus type ISA
Bus width 16-bit
Bus speed 8 MHz
8-bit ISA compatible?
Manufacturer UMC
Chipset UM8663AF
Compatible with IDE, PC Floppy, RS232, LPT, Gameport
Connectors RS232/DB9, LPT
Requires -5VDC? No
Requires -12VDC? Yes
Config method Jumpers
IO Controller
Serial ports 2
COM1/2/3/4? Yes / Yes / Yes / Yes
Parallel ports 1
ECP? Yes
EPP? Yes
LPT1/2/3/4? Yes / Yes / No / No
Game ports 1
Floppy Controller
Floppy buses 1
Drives per bus 2
Secondary? No
ROM type None
IDE Controller
IDE buses 2
Primary? Yes
Secondary? Yes
Tertiary? No
Quaternary? No
ROM type None
Driver N/A

The UMC TK-8663-2J-D02A is a generic Super I/O board from UMC, but probably mass-produced by other manufacturers.

The card's FCC ID is HBQUMC8663D2A
