Future Domain TMC1600

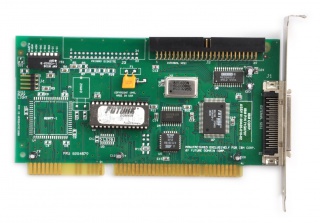

Future Domain TMC1600.jpg
Bus type ISA
Bus width 16-bit
Bus speed 8 MHz
8-bit ISA compatible? Unknown
"Unknown" is not recognized as a Boolean (true/false) value.
Manufacturer Future Domain
Chipset VY06416
Compatible with SCSI
Connectors Narrow SCSI/IDC50, Narrow SCSI/HD50, LED/4-pin
Requires -5VDC? No
Requires -12VDC? No
Config method DIP switches
SCSI Controller
SCSI buses 1
SCSI-1 (5 MB/s)
SCSI-2 (10 MB/s) Unknown
"?" is not recognized as a Boolean (true/false) value.
SCSI-2/W (20 MB/s)
SCSI-3 (40 MB/s)
ROM type 28-pin JEDEC
Driver Missing download URL

The Future Domain TMC1600 is an ISA SCSI card. It contains a ROM so in theory should be bootable, but at the time of writing, Malvineous has been unable to get a 286 to POST with one of these cards installed.
