Diamond Stealth Video VLB

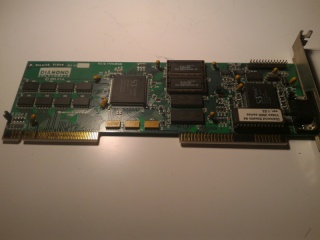

Diamond Stealth Video VLB.jpg
Bus type VLB
Bus width 32-bit
Bus speed 50 MHz
Manufacturer Diamond Multimedia
Chipset S3 Vision 868 (86C868-P)
Compatible with VGA
Connectors VGA
Requires -5VDC? No
Requires -12VDC? No
Config method Unknown
Video Output
Max memory 2 MB
2,097,152 B
Max resolution 1280 × 1024
ROM type 28-pin JEDEC
Driver mpoli.fi files, look for 868 and desired OS

The Diamond Stealth Video VLB is a VLB card with the S3 Vision 868 chipset released in April 1995. It shared the same PCB with the Diamond Stealth 64 DRAM, which has the slightly older Vision 864 chipset, whick lacks the motion video acceleration (zoom and RGB -> YUV conversion) that the 868 introduces.

Additional photos

Expansion RAM

This card uses S416270DJ-06 RAM chips. This is a 256k x 16-bit 60ns 5V EDO chip[1], in a 40-pin SOJ package. Suitable chips can be found on eBay by searching for 256Kx16 memory chips and confirming they are of the correct package type and 60ns or faster.

Compatible part numbers are:


  1. http://planetgeek.net/micronusa.htm
