Accton EN1640
From Vogons Wiki

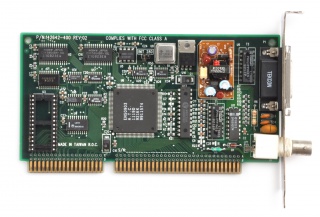

Accton EN1640
| Bus type | ISA |
|---|---|
| Bus width | 16-bit |
| Bus speed | 8 MHz |
| 8-bit ISA compatible? | Yes |
| Manufacturer | Accton Technology Corporation |
| Chipset | EN50903 |
| Compatible with | NE1000, NE2000 |
| Connectors | AUI, BNC |
| Requires -5VDC? | No |
| Requires -12VDC? | No |
| Config method | Software |
| Ethernet | |
| Boot ROM | Socket, 28-pin JEDEC, read-only |
| Driver | Vogonsdrivers |
The Accton EN1640 is a 10Mbps network card.
Additional photos
Underside

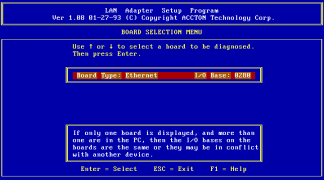

Config utility

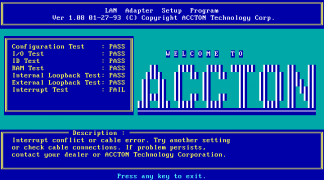

Diagnostics

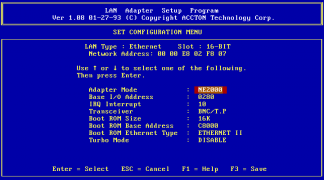

Config options
Boot ROM
This card's boot ROM socket will take a standard 28-pin ROM chip. It has also been successfully tested with a 32-pin ROM chip using an adapter[1]. XTIDE will run without any problem.
The card's DOS drivers come with a configuration program (DIAG/SETUP.EXE) that can be used to enable the ROM socket (it is disabled by default) and set the base address, as well as adjust all the usual options like base address and IRQ.
Resources
- I/O address: 0, 20, 40, ... 3A0, 3E0, then the same increments starting at 2000, 4000, 6000, 8000, A000, C000, E000.
- IRQ: 2, 3, 4, 5, 7, 10, 11, 15, Disabled.
- Boot ROM size: 16kB, 32kB, 64kB, Disabled.
- Boot ROM: 8000, 8400, 8800, 8C00, then the same increments starting at 9000, A000, B000, C000, D000, E000 and F000.
